Except for the feature of common belts, the products also have the characters of high temperature reistant, crack resistant, ageing resistant and longer use life.The carcass of this product has very high adhesion after the special treatment of coating and shaping. Under normal working temperature of below 150℃. The belt is suitable for conveying the cement,metallurgical and steel and other materials
The belt carcass of this product is EP fabric of high modulus, low shrink, and high breaking tensile strength. Cover rubber of this product uses EPDM rubber that has very good high temperature resistance. The belt is made with extra care after mixing rubber with high temperature resistant materials, assembling and vulcanizing
Rubber cover: 1.5-12mm
Standard: HG 2297,ISO 4195
|Burning Resistant Conveyor Belt|
|Except for the feature of common belt, the products also have the characters of heat resistant, crack resistant, ageing resistant and longer use life. It is suitable for conveying materials under the high temperature in industnes of metallurgy, cement, steel, ceking and etc. Product Character:|
The carcass of the product selects cotton canvas of EP canvas skeleton materials. The cover rubber and cushion rubber is made of heat resistant rubber material formula that has good heat resistant performance.
Rubber cover: 1.5-12mm
Standard; HG 2297, ISO 4195
|Heat Resistant Conveyor Belt|
|It is suitable for conveying materials under the high temperature of below 100℃ in industries of metallurgy, cement, steel, coking and etc, and it is one kind of tradition and popular belt. |
The carcass of the product selects cotton canvas of CC or EP canvas skeleton materials The cover rubber and cushion rubber is made of heat resistant rubber material formula that has good heat resistant performance.
Rubber cover 1.5-12mm
Standard: HG 2297, ISO 4195
|Polyester Heat resistant Conveyor Belt|
Compared with the common belts, the belts have the advantages of high strength, easily to be agglutinated, long use life, lower cost, stable physical performance, and are suitable for conveying materials under 125℃ C conditions.

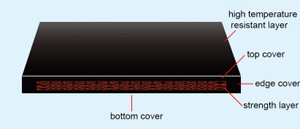

Structure: Carcass; Plies of EP canvas. Rubber cover: heat resistant rubber materials
Rubber cover thickness: 1.5-12mm
Standard: HG 2297 ISO 4195
|Matter to attention:|
|1. Select and put to use|
Select different belt types according to the different temperature, surface, viscosity conditions and other data of conveying materials.
The rubber cover temperature and the belt use time are closely connected. Please make full of tests of the temperature and other conditions, and then choose the suitable ones.
The thicker rubber cover is very important, we advise that the thickness of top rubber cover is 6-9mm, the bottom cover is 2-4mm.
2. Use requirement:
Please survey and record and supervise the temperature of the belt cover from time to time, and prevent the unnecessary higher temperature.
Cooling the belt when it is necessary.
Put the materlials on the belt evenly.
Prevent against the oil.
Unload the materials once the belts was stopped.
